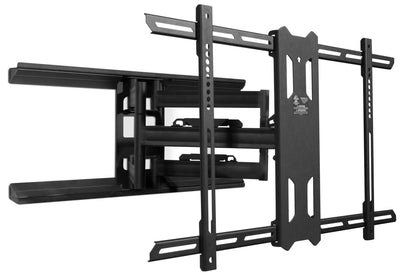

Kanto PDX680 Full Motion Mount for 39" to 80" TVs
Width: 29.8" (75.7 cm) Width: 29.8" (75.7 cm) Height: 17.2" (43.7 cm) Height: 17.2" (43.7 cm) Depth: 24" (61.0 cm) Depth: 24" (61.0 cm)
Width: 13" (33.0 cm) Height: 3.9" (9.9 cm) Depth: 33.9" (86.1 cm)
27.50 lbs (12.5 kg) 27.50 lbs (12.5 kg)
Meet the standard in full motion mounts from Kanto. Sitting a mere two inches from the wall and extending up to 24, the PDX680 full motion wall mount is the perfect solution for versatility. This space-saving device offers 18 degrees of tilt and a 27-inch wall plate to accommodate up to 24-inch studs. With integrated cable management and plastic caps to hide the lag bolts in the wall, the PDX680 is not only functional but easy on the eyes.
Key Features:
- Supports up to 125 Pounds
- Accessible Tilt Mechanism
- Clean Look
- Solid Steel Construction
- Installation Ready
Supports up to 125 Pounds
This mount fits most flat panel TVs from 39 to 80 inches, supports screens up to 125 pounds (57 kilograms) and accommodates VESA sizes from 200 x 100 to 700 x 400.
Accessible Tilt Mechanism
The accessible tilt mechanism provides +15° to -3° of tilt, 85 degrees of swivel in either direction depending on screen size.
Clean Look
Enjoy a clean design since this mount sits two inches (five centimetres) from the wall, extending up to 24 inches (61 centimetres) away, while also offering an integrated cable management system.
Solid Steel Construction
The 27-inch (68.5 centimetre) dual stud wall plate has solid steel construction with durable powder-coated finish, accommodating up to 24-inch stud spacing.
Installation Ready
The installation manual and all mounting hardware for wood studs and concrete installation is included.
Full Features and Specifications:
- TV Size: Fits most flat panel TVs from 39" to 80"
- Load Rated: Supports TVs up to 125 lb. (57 kg)
- VESA: Accommodates VESA sizes from 200 x 100 to 700 x 400
- Stud Spacing: 27" (68.5 cm) dual stud wall plate accommodates up to 24" stud spacing
- Tilt: Accessible tilt mechanism provides +15° to -3° of tilt
- Swivel: 85° of swivel in either direction, depending on screen size
- Extension: Extends up to 24" (61 cm) from the wall
- Profile: Sits 2" (5 cm) from the wall
- Levelling: Adjustable horizontal levelling
- Horizontal Offset: N/A
- Height Adjustment: N/A
- Lock: N/A
- Pull Cords: N/A
- Construction: Solid steel construction with durable powder-coated finish
- Cable Management: Integrated cable management system
- Assembly Required: Yes
- Product Weight: 23 lb. (10.5 kg)
- Box Contents: Mount, hardware, manual, punched cardboard template
